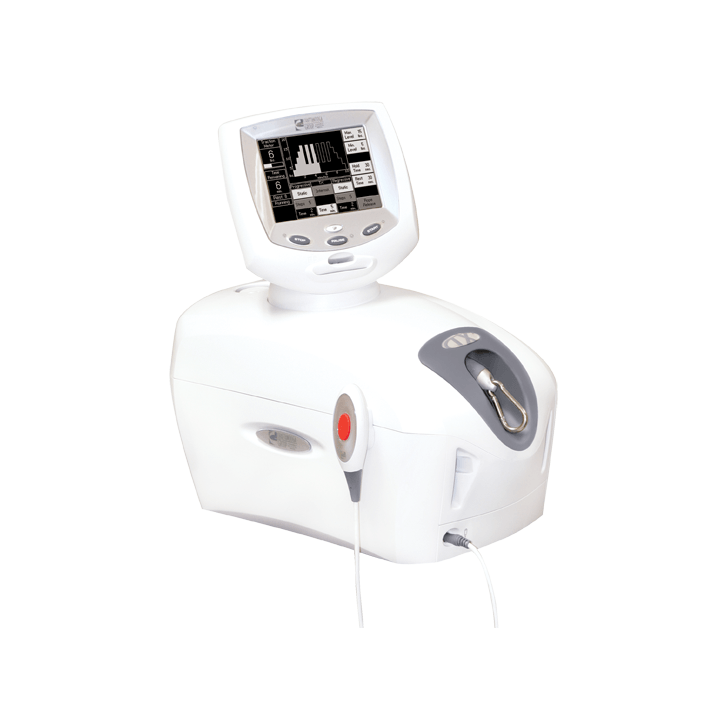

Chattanooga TX Traction Unit
Chattanooga TX Traction Unit
Regular price
$4,209.92
- In stock, ready to ship
4759 - TX Traction Unit
Chattanooga Clinic Traction provides clinically proven pain treatment that gets to the root of Cervical and Lumbar Pain, allowing clinicians to mimic the feel and effectiveness of hands-on treatment using fully programmable pull patterns.
Restores function by mobilizing the muscles, ligaments and joints decompressing the nerve roots and distracting intervertebral discs
- Reduces Disc Pressure
- Relieves Nerve Root Compression
- Improves Blood Flow
- Relaxes Muscles
Graduated static, intermittent and cyclic tension options closely mimic the feel of hands-on therapy
- Controlled, consistent & repeatable traction force
- Ability to maintain clinically effective forces regardless of patient size
- Quick and easy belting provides comfortable and stable anchoring
- Multiple table adjustments to achieve ideal treatment positioning
A vital component in a comprehensive spine therapy program
- Compliments manual therapy and other modalities
- Applicable for acute, sub-acute and chronic conditions
- Reduces physical demands on the clinician
- Helps optimize patient flow efficiency in clinic
- Easy to operate
- 270° pivoting user interface
- Digital monochromatic touch screen interface
- Patient Data Cards record up to 14 treatment sessions
- Store up to 10 user defined protocols
- Intermittent, static and cyclic traction
- Progressive and regressive steps
- User-defined hold, rest and treatment times
- Traction tension parameters: 0-200 lbs
- Built-in safety features:
- Patient Interrupt Switch
- Cervical maximan poundage warning
- Audible signal at the end of treatment and if Patient Interupt Switch activates
| SPECIFICATION | DESCRIPTION |
|---|---|
| Mains Power: | 100-240 V, 50/60 Hz |
| Power Consumption: | 75 V |
| Current Consumption: | 3.2 Amps Max |
| Product Weight: | 30 lbs (14 kg) |
| Dimensions: | 17.5"L x 9.5"W x 17.5"H (45 cm x 24 cm x 45 cm) |
| Electrical Safety Class: | Class 1, Type B |
| Safety Tests: | IEC/UL/EN: 60661-1, 60601-1-2; CAN C22.2 No. 601.1-M90 w/A2; cETLus Listed |
Traction Tension Parameters
| TRACTION TENSION PARAMETERS | MINIMUM - MAXIMUM | INCREMENTS |
|---|---|---|
| Traction Period | 1 - 99 Minutes | 1 Minute |
| Hold Period | 0 - 99 Seconds | 1 Second |
| Rest Period | 0 - 99 Seconds | 1 Second |
| Traction Tension | 0 - 200 lb [(0 kg/0 N) - (90 kg/890 N) | 1 lb (1 kg/5 N) |
| Progressive Steps | 1 Step - 9 Steps | 1 Step |
| Regressive Steps | 1 Step - 9 Steps | 1 Step |
